HEAVY MOBILE DIESEL SERIES

IMPAKTOR 850

Field gallery · 05 frames
[ 01 / 05 ]

IMPAKTOR 850 mobile twin-shaft shredder with 340 kW drive and 24 t operating weight. Built for old wood, biomass, green cuttings, paper, commercial waste, and rubber with quick-change shafts and high-output throughput.

From$322,920EXW
Request quote & TCO payload
+381644422555Email sales

Product Demonstration

Video Transcript

This video features the IMPAKTOR 850 industrial shredder designed for heavy-duty recycling applications. The Impaktor 850 is engineered for processing wood, biomass, and green cuttings at industrial scale. Watch the machine efficiently shred trunk wood, roots, waste wood, and biomass fractions using its high-torque twin-shaft system. The 850 series is optimized for biomass power plants, composting facilities, and wood recycling operations. Key features visible in the video include the large hopper volume for bulk material feeding, the slow-speed shredding technology that produces a consistent fraction size, and the discharge conveyor belt that directly loads processed material into transport vehicles. This machine is a primary solution for waste wood processing and biomass feedstock preparation.

Industrial Applications

Industrial Applications

Verified deployment scenarios for the IMPAKTOR 850 across C&D waste recycling, landfill reduction programs, and fraction size optimization workflows.

C&D Waste

Construction & Demolition Waste Processing

The IMPAKTOR 850 processes mixed C&D waste streams — concrete, brick, timber, plastics, and mixed debris — in a single pass. With 456 HP diesel drive, it delivers up to 50 ST/h throughput, eliminating the need for pre-sorting and reducing landfill-bound material by up to 85%.

LANDFILL REDUCTION

Landfill Diversion & Volume Reduction

On-site 456 HP diesel-powered shredding converts bulky demolition debris into reusable aggregate fractions, achieving landfill reduction rates of 80–90%. Processed material can be directly reused as road base, pipe bedding, or fill — closing the material loop and cutting gate-fee costs by up to 60%.

FRACTION SIZE OPTIMIZATION

Fraction Size Optimization via Interchangeable Sieves

Interchangeable sieve baskets allow precise fraction size optimization: from 1" fine fraction for sub-base production to 6" coarse output for erosion control. The quick-change cassette system minimizes downtime between fraction changes — under 15 minutes — keeping multi-fraction job sites productive.

Field gallery · 06 frames
[ 01 / 06 ]

Technical Specifications

DIMENSIONS
Version
Mobile unit
Working Length
39' 4"
Transport Length
30' 4"
Transport Width
8'
Transport Height
10' 6"
Total weight
26.5 US ton (52,911 lbs)
DRIVE
Engine
Diesel engine
Emission standard
EU emissions standard
Power
340 / 460
Fuel capacity
285.3 gal
Gearbox
Bonfiglioli
DISCHARGE CONVEYOR
Discharge height
3' 3" - 14' 9" (Adjustable)
Width
3' 11"
Magnet
Optional overband magnet
SHREDDING UNIT
Hopper volume
8.0 (Incl. tilting hopper)
Shaft length
7' 3"
Shaft diameter
2' 3"
Cassette weight
3.9 US ton (7,716 lbs)
Rotation speed
24 – 64
Sieve Basket
Quick-change system included
Power Output
RATED BENCHMARK ENVELOPE29-57 ST/h
Old wood
RATED BENCHMARK ENVELOPE50-99 ST/h
Green cuttings / Biomass
RATED BENCHMARK ENVELOPE17-35 ST/h
Commercial waste
RATED BENCHMARK ENVELOPE21-43 ST/h
Trunk wood and roots
RATED BENCHMARK ENVELOPE21-43 ST/h
Paper and cardboard
RATED BENCHMARK ENVELOPE10-21 ST/h
Rubber and old tires
Shaft systems · 02 variants

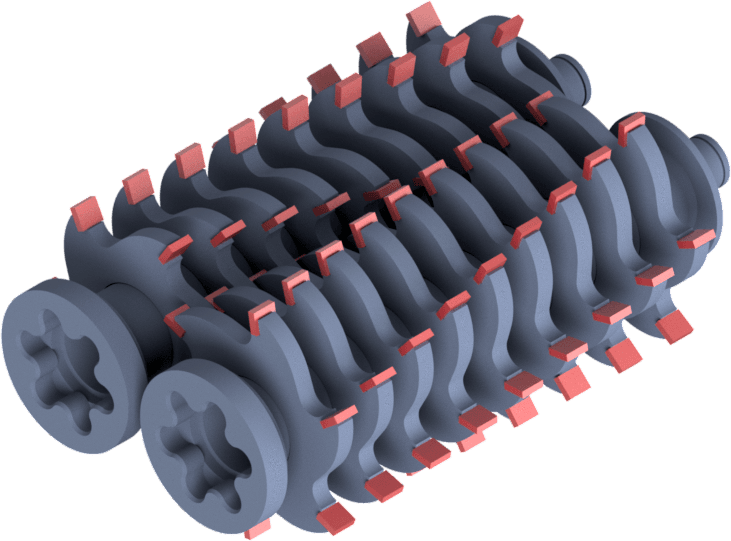

IMPAKTOR 850 shaft configuration for wood and biomass processing 1
■ IMPAKTOR 850 shaft configuration for wood and biomass processing 1

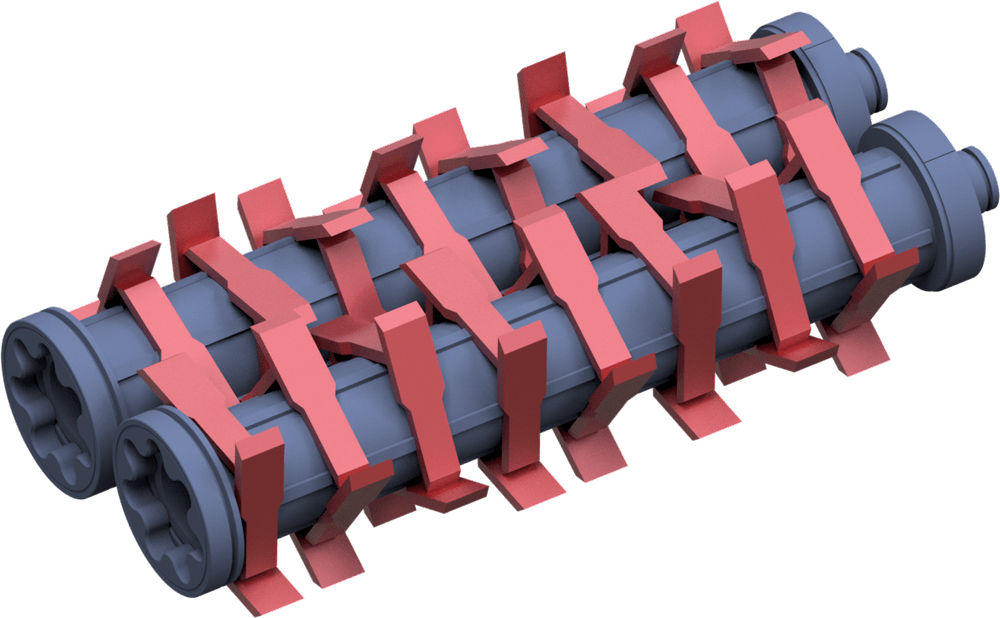

IMPAKTOR 850 shaft configuration for wood and biomass processing 2
■ IMPAKTOR 850 shaft configuration for wood and biomass processing 2
Operation footage
Verified Field Telemetry Archive

In Action

Status: Optimal

Records: 6 Units

● VERIFIED ARCHIVE||Bavaria, DE
GPS: 48.7904° N, 11.4976° E
|
MATERIAL: Mixed C&D Waste / Concrete Rubble
RECORDED SESSION RATE: 42 ST/h
|00:42 — Rebar Ingestion → Auto-Reverse
00:42 — Rebar Ingestion → Auto-Reverse

Signal

SSL_ACTIVE

Metadata

Impaktor 850: Wurzer Umwelt

RENDER_OK

Coords

48.7904° N, 11.4976° E

Multi-Channel Feed

●─ MILESTONES
00:42
Rebar Ingestion → Auto-Reverse
02:18
Shaft Torque Peak 104,734 lb-ft
04:55
Fraction 0-2 in Output Stable
End of Archive
AXE MACHINERY // HEAVY DUTY // INDUSTRIAL FORCE // SERIES 4
STABLE

ROI Calculator

Loading…
Loading…

Competitor Comparison

vs
IMPAKTOR 850 vs Terex TTS 620Terex mid-class twin-shaft shredder positioned for C&D and biomass processing, comparable to the ARJES Impaktor 850 in operating weight class.
vs
IMPAKTOR 850 vs Vermeer LS3600TXVermeer LS3600TX — a heavy single-shaft mechanical shredder (32.49 t, CAT C13B 340 kW, twin-disk reversing with ball-detent torque limiter) for C&D and green waste, weighed against the ARJES Impaktor 850 (single-shaft asynchronous hydrostatic, 24 t, 204,000 Nm). The matchup exposes the mechanical driveline shock-load penalty and regulatory transport friction against ARJES cassette serviceability and asynchronous torque absorption.
vs
IMPAKTOR 850 vs Bandit 2680XP TrackBandit 2680XP Track — a heavy horizontal high-speed cuttermill (30.84 t, CAT C18 563 kW, fluid clutch + V-belt mechanical driveline) for green waste and clean wood, weighed against the ARJES Impaktor 850 (single-shaft asynchronous hydrostatic, 24 t, 204,000 Nm). The matchup exposes the brute-force fuel penalty, frequent tooth maintenance, and heavy-haul transport friction against ARJES cassette serviceability, fuel efficiency, and logistics freedom.
MODEL TCO FOR YOUR OPERATION

Gate fees, landfill taxes, and energy costs swing the verdict by ±30%. Run the live TCO model for your region.

Compliance Hub // 13 jurisdictions · interactive calculator · preset: 500 t/moRun live TCO model
Expert Context

Compliance & Efficiency Briefing

WOOD_BIOMASS

Wood Waste & Biomass Shredding

The Impaktor 850 is purpose-built for high-volume wood waste and biomass processing with its specialized paddle shaft configuration. It efficiently handles green cuttings, root stocks, railway sleepers, and mixed commercial wood waste at rates reaching 99 ST/h, producing homogeneous fraction sizes ideal for biomass co-generation plants and wood chip fuel production.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

[ 01 / 04 ]
WOOD_BIOMASS

Wood Waste & Biomass Shredding

The Impaktor 850 is purpose-built for high-volume wood waste and biomass processing with its specialized paddle shaft configuration. It efficiently handles green cuttings, root stocks, railway sleepers, and mixed commercial wood waste at rates reaching 99 ST/h, producing homogeneous fraction sizes ideal for biomass co-generation plants and wood chip fuel production.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.
