SUPER HEAVY STATIONARY ELECTRIC SERIES

IMPAKTOR 1250 E

Field gallery · 04 frames
[ 01 / 04 ]

The ultimate electric twin-shaft shredder IMPAKTOR 1250 E, powered by a massive 500 kW (2x250 kW) asynchronous electric drive (46,000 kg). Features Hardox wear parts to maximize ROI and lower TCO. Designed for emission-free, extreme-duty processing of car bodies, scrap metal, and concrete.

From$571,860EXW
Request quote & TCO payload
+381644422555Email sales
Industrial Applications

Industrial Applications

Verified deployment scenarios for the IMPAKTOR 1250 E across C&D waste recycling, landfill reduction programs, and fraction size optimization workflows.

C&D Waste

Construction & Demolition Waste Processing

The IMPAKTOR 1250 E processes mixed C&D waste streams — concrete, brick, timber, plastics, and mixed debris — in a single pass. With 671 HP electric drive, it delivers up to 198 ST/h throughput, eliminating the need for pre-sorting and reducing landfill-bound material by up to 85%.

LANDFILL REDUCTION

Landfill Diversion & Volume Reduction

On-site 671 HP electric-powered shredding converts bulky demolition debris into reusable aggregate fractions, achieving landfill reduction rates of 80–90%. Processed material can be directly reused as road base, pipe bedding, or fill — closing the material loop and cutting gate-fee costs by up to 60%.

FRACTION SIZE OPTIMIZATION

Fraction Size Optimization via Interchangeable Sieves

Interchangeable sieve baskets allow precise fraction size optimization: from 1" fine fraction for sub-base production to 6" coarse output for erosion control. The quick-change cassette system minimizes downtime between fraction changes — under 15 minutes — keeping multi-fraction job sites productive.

Technical Specifications

DIMENSIONS
Version
Stationary electric platform
Length
24' 11" (Transport)
Width
9' 10" (Transport)
Height
11' 2" (Transport)
Total weight
50.7 US ton (101,413 lbs)
DRIVE
Electric Motor
Asynchronous electric drive
Auxiliary Motor
Auxiliary drive
Total Power
500 / 680
Inverter
Included (Frequency inverter)
Gearbox
Bonfiglioli
DISCHARGE CONVEYOR
Discharge height
Variable
Width
4' 7"
Features
Overbelt magnet and water sprinkler system
SHREDDING UNIT
Hopper volume
15.0
Shaft length
8' 2"
Shaft diameter
2' 9"
Cassette weight
7.7 US ton (15,432 lbs)
Rotation speed
15 – 45
Power Output
RATED BENCHMARK ENVELOPE198-220 ST/h
APPLICATION RATED RANGE154-198 ST/h
FIELD OBSERVED174 ST/h at Voestalpine on clean C&D (electric)
Construction & Demolition waste
RATED BENCHMARK ENVELOPE154-176 ST/h
APPLICATION RATED RANGE121-154 ST/h
VERIFIED SUSTAINED121 ST/h
FIELD OBSERVED134 ST/h on M300 concrete (electric)
Concrete / Asphalt
RATED BENCHMARK ENVELOPE110-165 ST/h
APPLICATION RATED RANGE88-132 ST/h
Waste wood
RATED BENCHMARK ENVELOPE165-220 ST/h
APPLICATION RATED RANGE132-187 ST/h
Biomass
RATED BENCHMARK ENVELOPE28-33 ST/h
Car bodies

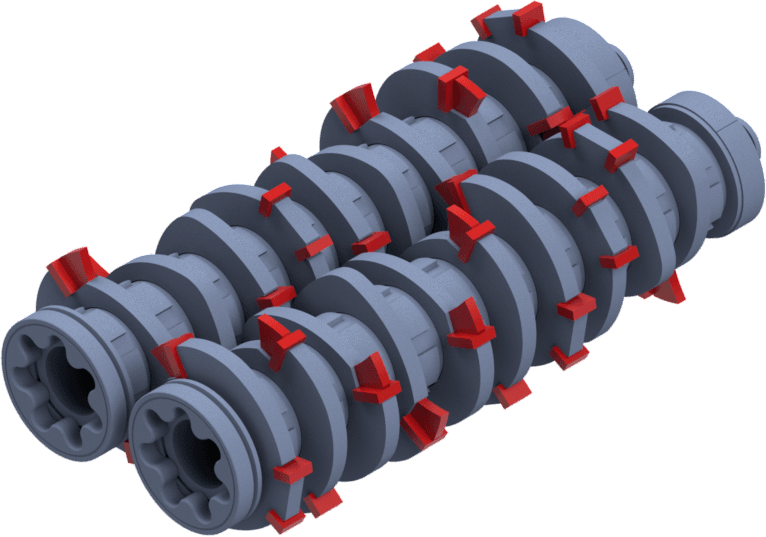

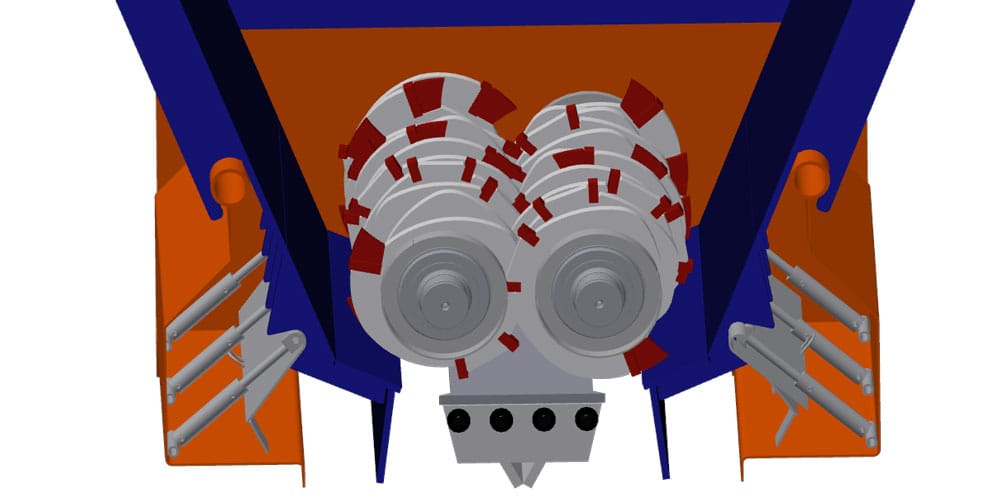

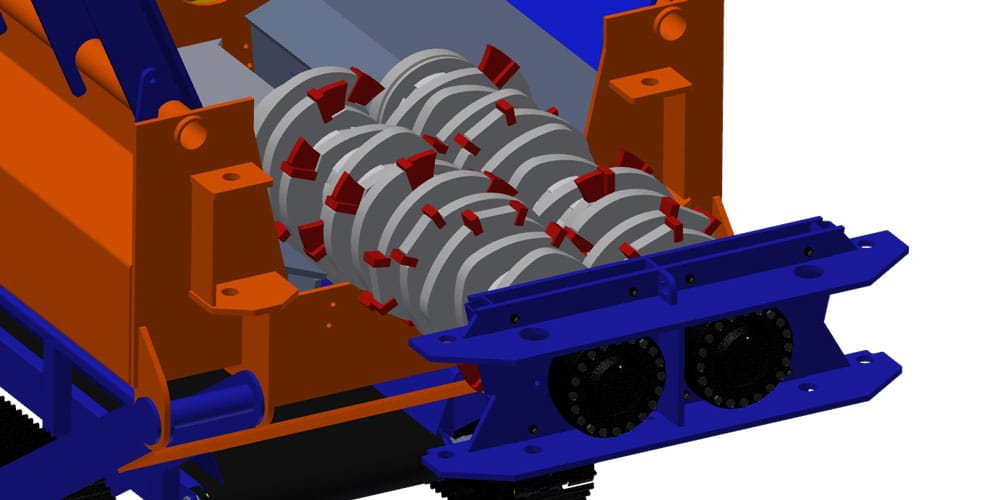

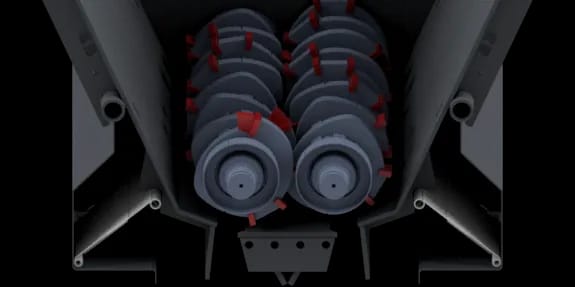

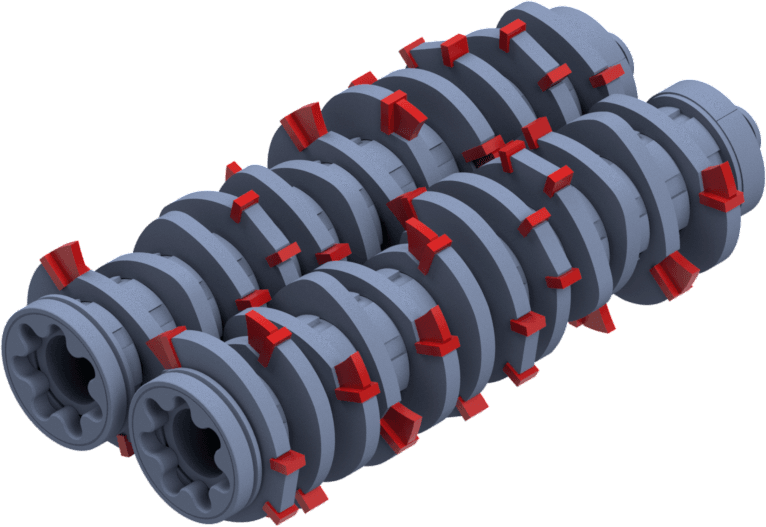

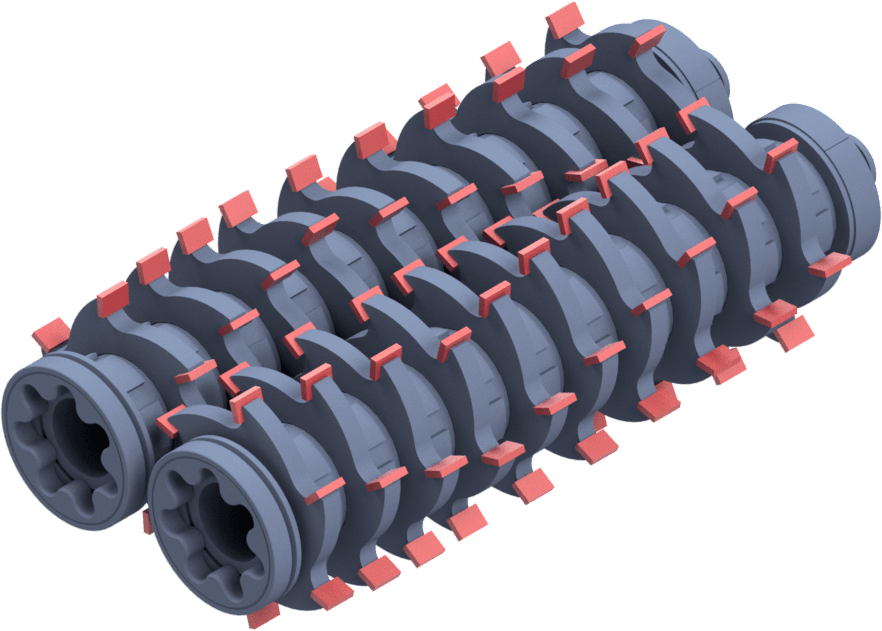

Shaft systems · 03 variants
IMPAKTOR 1250 E shaft configuration for concrete and mineral waste processing 1
■ IMPAKTOR 1250 E shaft configuration for concrete and mineral waste processing 1
IMPAKTOR 1250 E shaft configuration for concrete and mineral waste processing 2
■ IMPAKTOR 1250 E shaft configuration for concrete and mineral waste processing 2
IMPAKTOR 1250 E shaft configuration for concrete and mineral waste processing 3
■ IMPAKTOR 1250 E shaft configuration for concrete and mineral waste processing 3
Operation footage
Verified Field Telemetry Archive

In Action

Status: Optimal

Records: 6 Units

● VERIFIED ARCHIVE||Bavaria, DE
GPS: 48.7904° N, 11.4976° E
|
MATERIAL: Mixed C&D Waste / Concrete Rubble
RECORDED SESSION RATE: 42 ST/h
|00:42 — Rebar Ingestion → Auto-Reverse
00:42 — Rebar Ingestion → Auto-Reverse

Signal

SSL_ACTIVE

Metadata

Impaktor 850: Wurzer Umwelt

RENDER_OK

Coords

48.7904° N, 11.4976° E

Multi-Channel Feed

●─ MILESTONES
00:42
Rebar Ingestion → Auto-Reverse
02:18
Shaft Torque Peak 104,734 lb-ft
04:55
Fraction 0-2 in Output Stable
End of Archive
AXE MACHINERY // HEAVY DUTY // INDUSTRIAL FORCE // SERIES 4
STABLE

ROI Calculator

Loading…
Loading…

Competitor Comparison

vs
IMPAKTOR 1250 E vs Lindner Komet 2800Lindner Komet 2800 — a stationary twin-shaft electric shredder positioned for waste wood, RDF, and biomass processing, often compared against the ARJES Impaktor 1250 E in the 500 kW heavy-electric class.
vs
IMPAKTOR 1250 E vs TANA Shark 4400TANA Shark 4400 — a single-shaft slow-speed shredder (32 t, Cummins 400 kW) with adjustable counter-screen for RDF-fuel fraction control, weighed against the ARJES Impaktor 1250 E electric flagship (500 kW VFD dual asynchronous motors) on 10,000-hour energy TCO and rebar wrapping failure modes. The same single-shaft critique extends to the Komptech Terminator 6000 (28 t, CAT 440 kW) — see the dedicated duel at /tech/compare/komptech-terminator-6000-vs-impaktor-1250-e and the asynchronous-torque-baseline-160000-nm research brief for the 160,000 Nm dual-shaft floor that monolithic single-shaft machines cannot match.
vs
IMPAKTOR 1250 E vs Komptech Terminator 6000Komptech Terminator 6000 — an Austrian single-shaft diesel slow-speed shredder (28 t, Caterpillar C13 440 kW) positioned for RDF fraction control and C&D processing, weighed against the ARJES Impaktor 1250 E electric VFD flagship (500 kW dual asynchronous, 160,000 Nm torque baseline, 14t hooklift-compatible). The matchup exposes the single-shaft rebar-wrapping failure mode, the restrictive HV-cable infrastructure of the diesel-electric variant, and the 96-hour hardfacing downtime penalty.
MODEL TCO FOR YOUR OPERATION

Gate fees, landfill taxes, and energy costs swing the verdict by ±30%. Run the live TCO model for your region.

Compliance Hub // 13 jurisdictions · interactive calculator · preset: 1000 t/moRun live TCO model
Expert Context

Compliance & Efficiency Briefing

STATIONARY_ELECTRIC

Stationary Electric Shredder for Indoor Recycling

The 215 HP electric drive eliminates diesel emissions entirely, enabling stationary indoor deployment at recycling facilities and transfer stations. Frequency converter control provides precise torque management for consistent processing of construction waste, concrete, and asphalt without noise restrictions or urban emission zone compliance requirements.

Verified Throughput

Electric Processing — Up to 88 ST/h Capacity

Engineered for small-to-medium operations requiring up to 88 ST/h concrete throughput with zero direct emissions. The 215 HP electric motor paired with a 4' 11" twin-shaft system and Bonfiglioli gearbox processes construction and demolition waste at sustained rates while maintaining sub-70 dB(A) operating noise levels suitable for indoor facilities and residential-adjacent work zones.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

[ 01 / 05 ]
STATIONARY_ELECTRIC

Stationary Electric Shredder for Indoor Recycling

The 215 HP electric drive eliminates diesel emissions entirely, enabling stationary indoor deployment at recycling facilities and transfer stations. Frequency converter control provides precise torque management for consistent processing of construction waste, concrete, and asphalt without noise restrictions or urban emission zone compliance requirements.

Verified Throughput

Electric Processing — Up to 88 ST/h Capacity

Engineered for small-to-medium operations requiring up to 88 ST/h concrete throughput with zero direct emissions. The 215 HP electric motor paired with a 4' 11" twin-shaft system and Bonfiglioli gearbox processes construction and demolition waste at sustained rates while maintaining sub-70 dB(A) operating noise levels suitable for indoor facilities and residential-adjacent work zones.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

Regulatory compliance

Compliance-Ready Jurisdictions

This industrial shredder is the recommended solution for construction and demolition waste processing under landfill tax regulation mandates.
