COMPACT MOBILE DIESEL SERIES

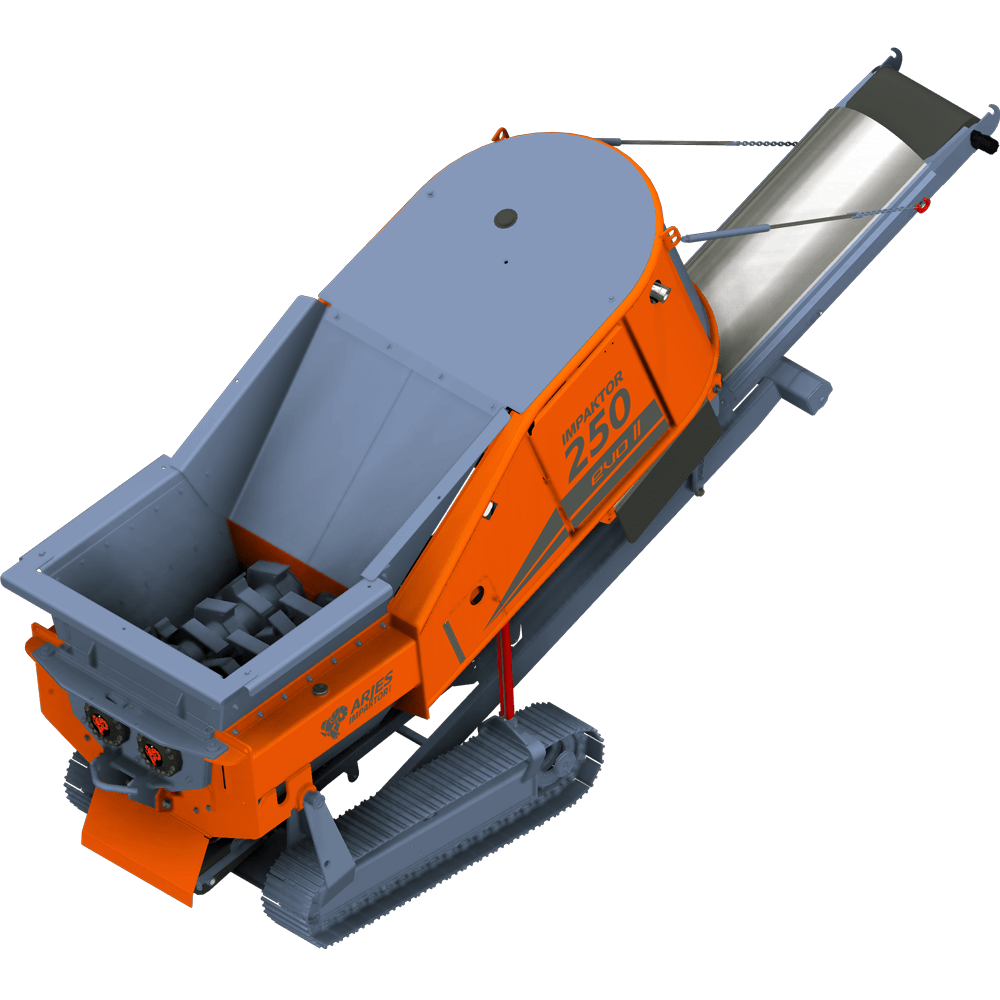

IMPAKTOR 250 EVO II

Field gallery · 13 frames
[ 01 / 13 ]

Arjes machinery mobile twin-shaft shredder IMPAKTOR 250 EVO II equipped with a 129 kW diesel engine and 13,400 kg operating weight. Features an advanced quick-change shaft cassette and Hardox wear parts for maximum throughput in construction waste, concrete, and biomass processing. Available for sale with flexible B2B financing.

Impaktor 350 EVO II — Higher Throughput

From$175,500EXW
Request quote & TCO payload
+381644422555Email sales

Product Demonstration

Video Transcript

This video demonstrates the IMPAKTOR 250 EVO II industrial shredder in a live recycling operation. The twin-shaft slow-speed shredding system processes construction and demolition waste, including concrete rubble, mixed debris, and waste wood, at high throughput rates. Watch the machine shred C&D waste directly on site with its tracked undercarriage for mobile recycling deployment. The Impaktor 250 series features interchangeable sieve baskets for precise fraction sizing, a low-speed shaft design that reduces wear costs, and a compact transport frame for easy relocation between job sites. Typical applications include on-site concrete recycling, demolition waste volume reduction, and biomass shredding for waste-to-energy feedstock preparation.

Industrial Applications

Industrial Applications

Verified deployment scenarios for the IMPAKTOR 250 EVO II across C&D waste recycling, landfill reduction programs, and fraction size optimization workflows.

C&D Waste

Construction & Demolition Waste Processing

The IMPAKTOR 250 EVO II processes mixed C&D waste streams — concrete, brick, timber, plastics, and mixed debris — in a single pass. With 173 HP diesel drive, it delivers up to 88 ST/h throughput, eliminating the need for pre-sorting and reducing landfill-bound material by up to 85%.

LANDFILL REDUCTION

Landfill Diversion & Volume Reduction

On-site 173 HP diesel-powered shredding converts bulky demolition debris into reusable aggregate fractions, achieving landfill reduction rates of 80–90%. Processed material can be directly reused as road base, pipe bedding, or fill — closing the material loop and cutting gate-fee costs by up to 60%.

FRACTION SIZE OPTIMIZATION

Fraction Size Optimization via Interchangeable Sieves

Interchangeable sieve baskets allow precise fraction size optimization: from 1" fine fraction for sub-base production to 6" coarse output for erosion control. The quick-change cassette system minimizes downtime between fraction changes — under 15 minutes — keeping multi-fraction job sites productive.

Technical Specifications

DIMENSIONS
Version
Mobile unit
Working Height
12' 10"
Transport Height
8' 4"
Length
25' 3" / 23' 11" (Transport)
Width
7' 7" / 7' 7" (Transport)
Total weight
14.8 US ton (29,542 lbs)
DRIVE
Engine
Diesel engine
Emission standard
EU emissions standard
Electrical Frequency
60Hz
Power
129 / 175
Fuel capacity
79.3 gal
Gearbox
Bonfiglioli
DISCHARGE CONVEYOR
Discharge height
10' 6"
Width
2' 7"
Included
Overbelt magnet, discharge container, and water sprinkler system
SHREDDING UNIT
Hopper volume
2.25
Shaft length
4' 11"
Shaft diameter
2' 3"
Weight
2.0 US ton (3,968 lbs)
Rotation speed
11 – 35
Power Output
RATED BENCHMARK ENVELOPE88-110 ST/h
APPLICATION RATED RANGE66-88 ST/h
FIELD OBSERVED24 ST/h at Zech Bau on mixed C&D + rebar
Construction & Demolition waste
RATED BENCHMARK ENVELOPE66-88 ST/h
APPLICATION RATED RANGE50-66 ST/h
VERIFIED SUSTAINED61 ST/h
FIELD OBSERVED12 ST/h on reinforced B45 concrete
Concrete / Asphalt
RATED BENCHMARK ENVELOPE11 ST/h
APPLICATION RATED RANGE9-11 ST/h
Waste wood
RATED BENCHMARK ENVELOPE22 ST/h
APPLICATION RATED RANGE20-25 ST/h
Biomass
RATED BENCHMARK ENVELOPE11-17 ST/h
APPLICATION RATED RANGE9-13 ST/h
Waste & Plastics
Screening systems

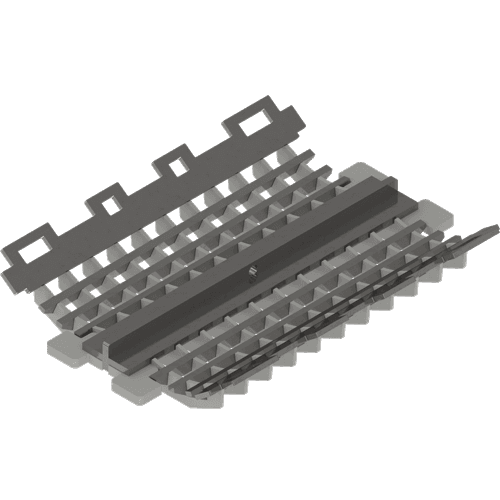

Siebkorb Beton
■ Siebkorb Beton

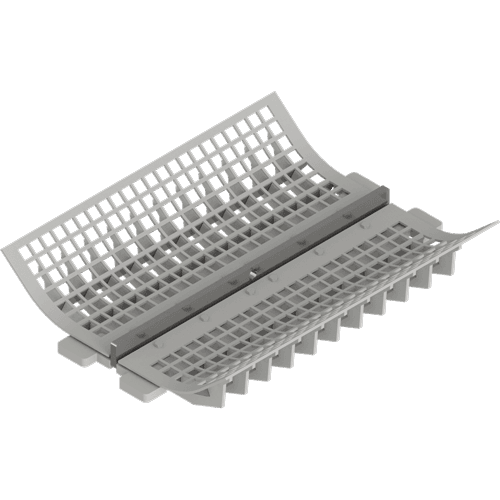

Siebkorb Elektroschrott
■ Siebkorb Elektroschrott

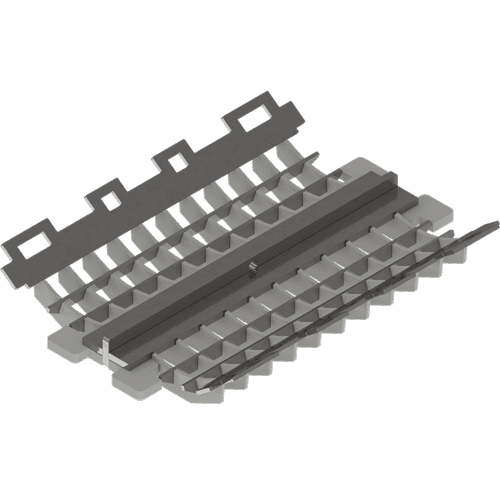

Siebkorb Holz
■ Siebkorb Holz

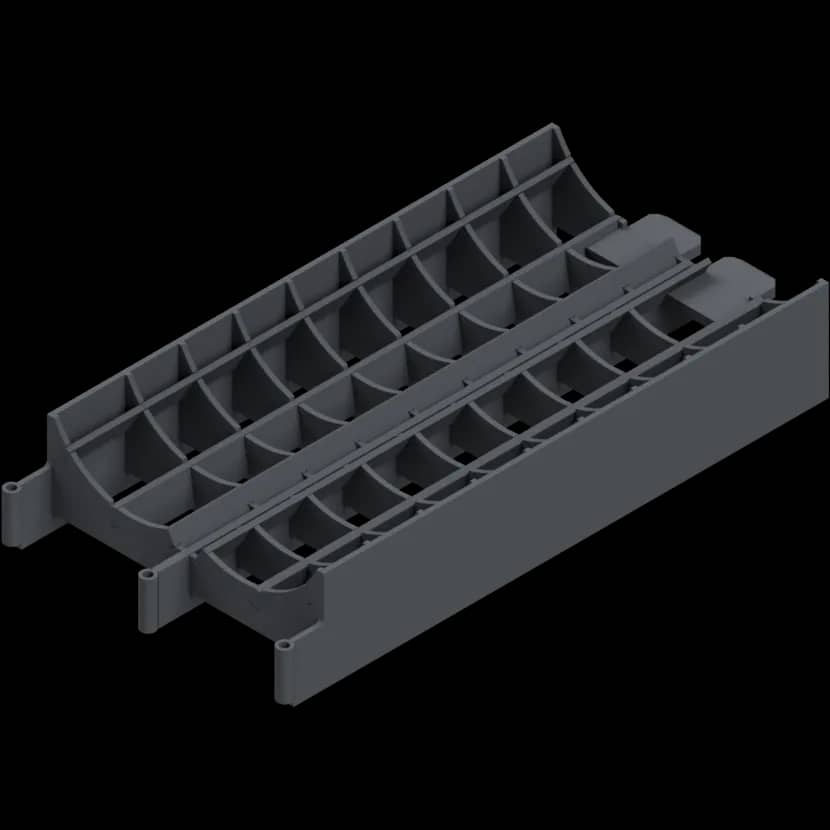

Siebkorb Impaktor 850 2x210x210
■ Siebkorb Impaktor 850 2x210x210
Siebkorb Impaktor 850 2x250x250
■ Siebkorb Impaktor 850 2x250x250

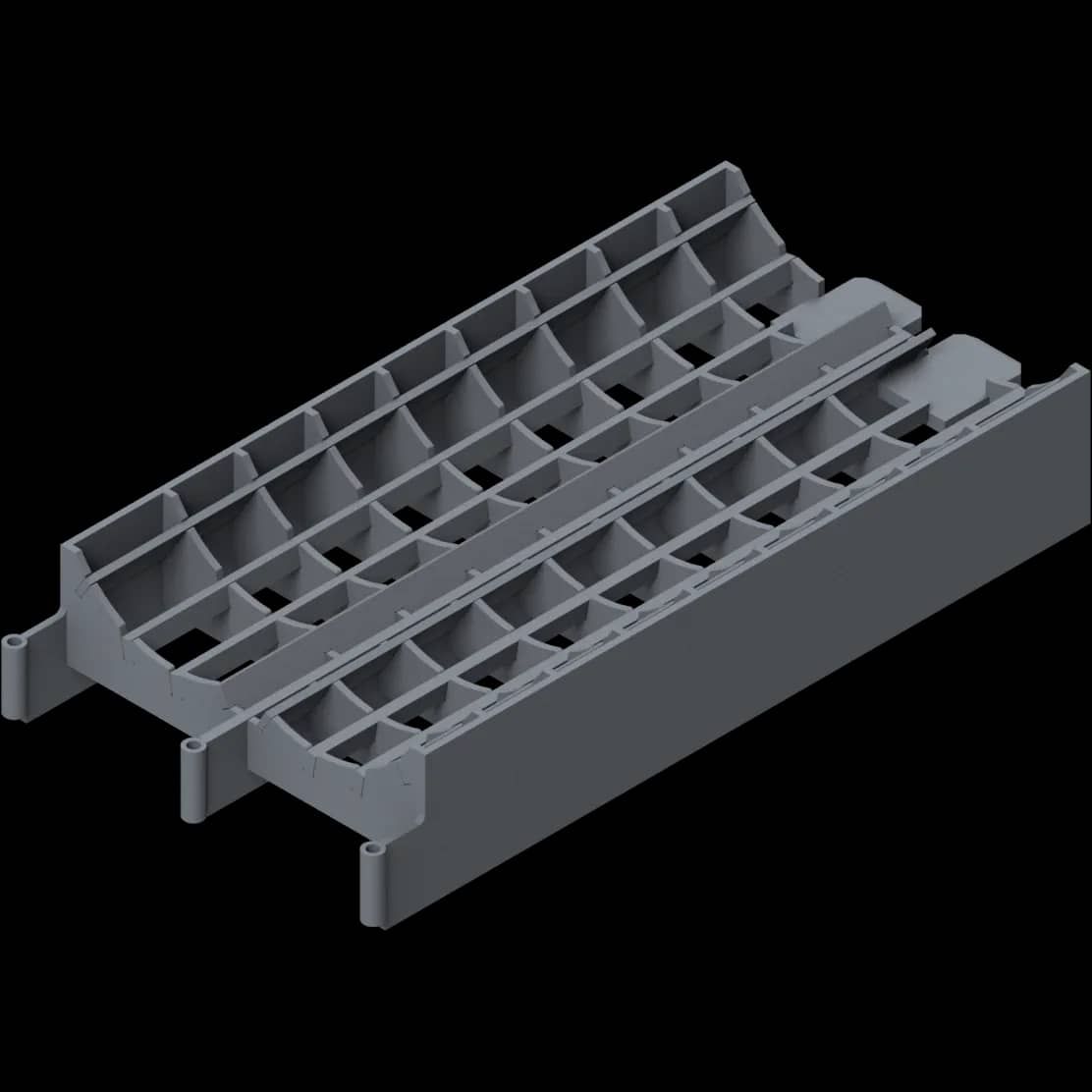

Siebkorb Impaktor 850 3x210x130
■ Siebkorb Impaktor 850 3x210x130
Attachments

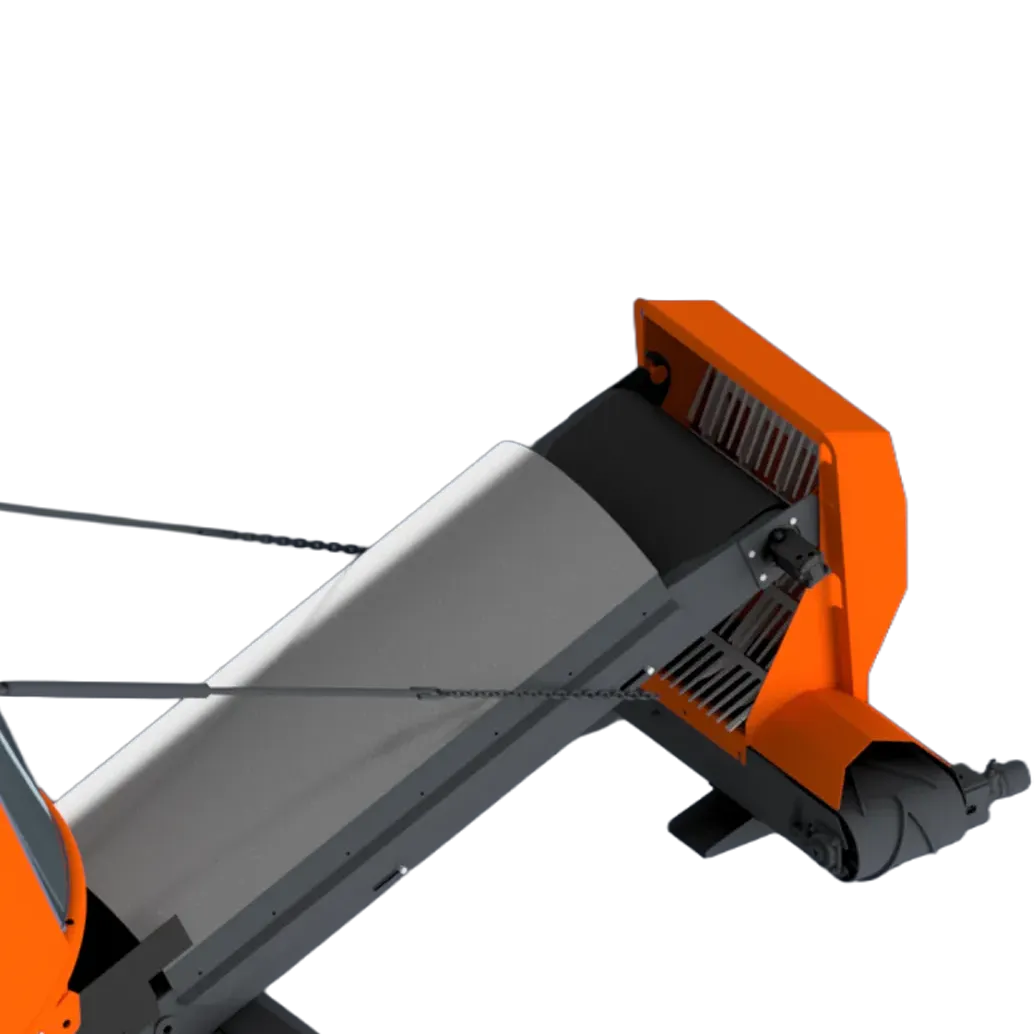

IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 1
■ IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 1

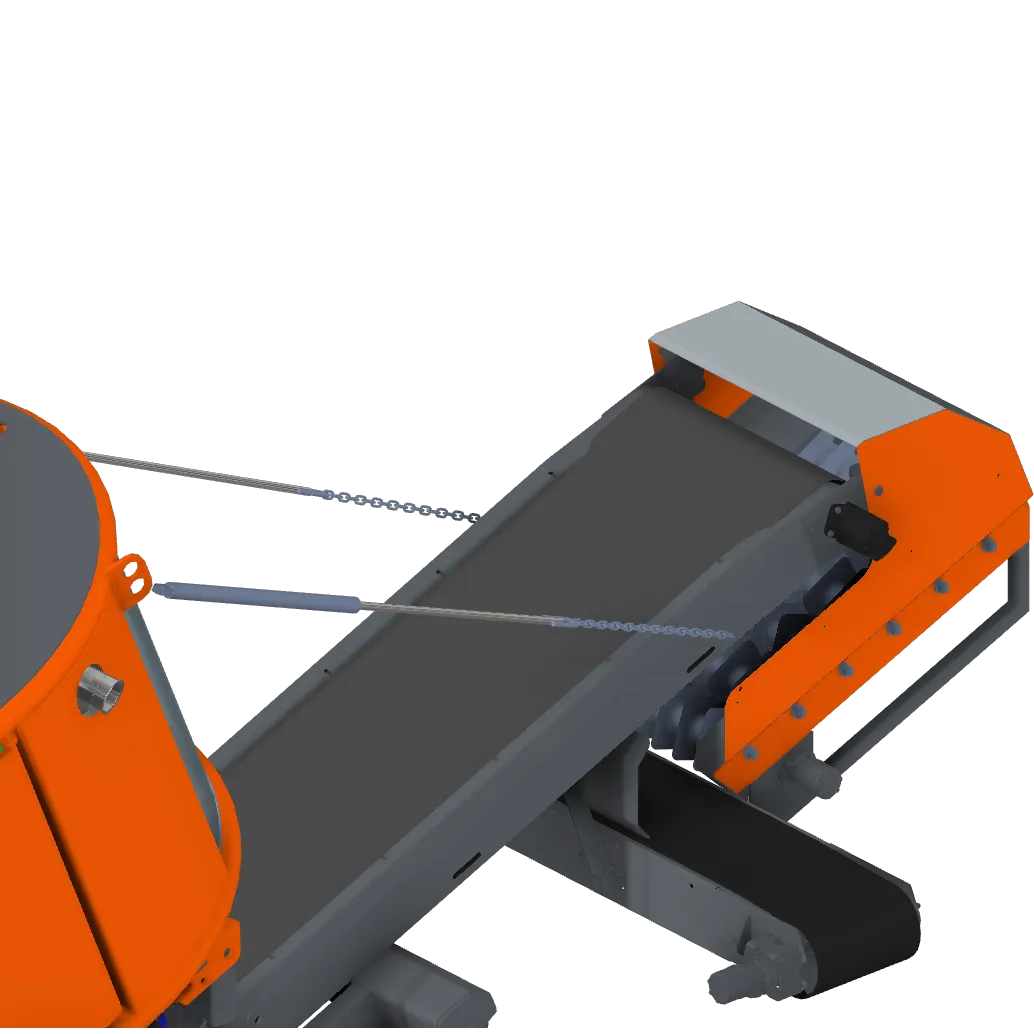

IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 2
■ IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 2

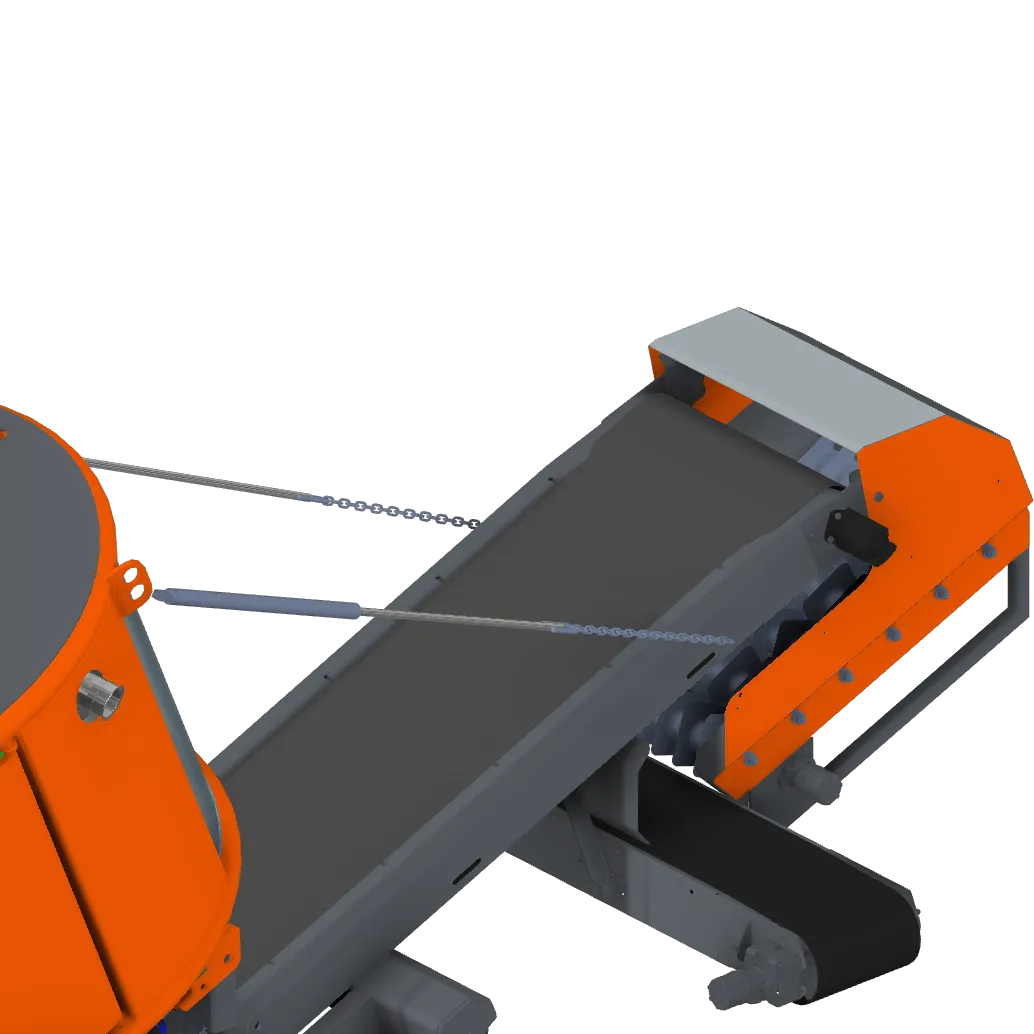

IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 3
■ IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 3

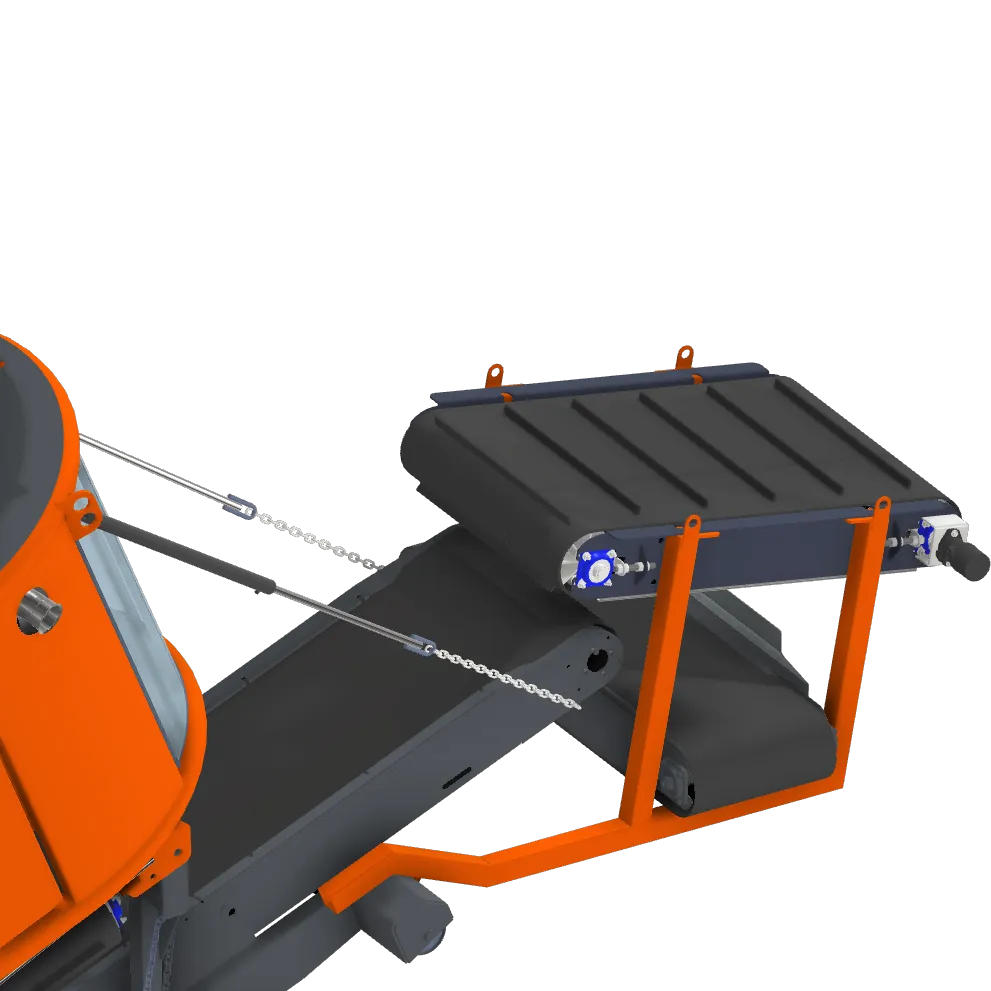

IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 4
■ IMPAKTOR 250 EVO II attachment module for concrete and mineral waste processing 4
Shaft systems · 03 variants

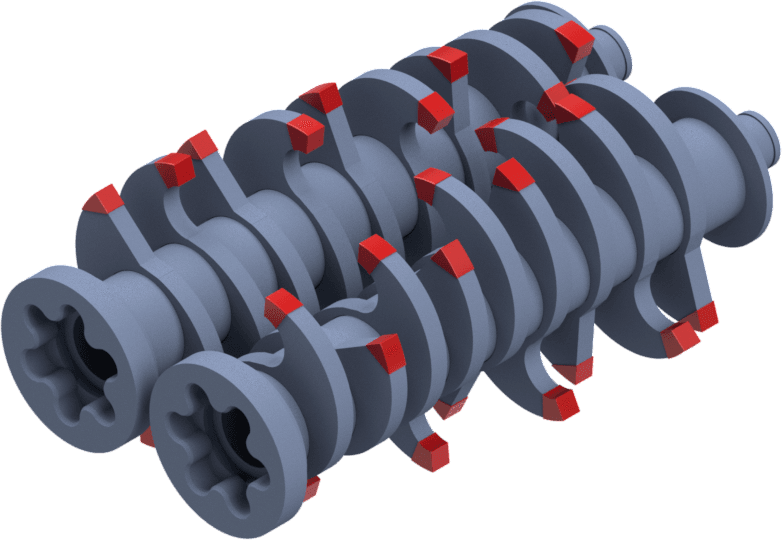

IMPAKTOR 250 EVO II shaft configuration for concrete and mineral waste processing 1
■ IMPAKTOR 250 EVO II shaft configuration for concrete and mineral waste processing 1

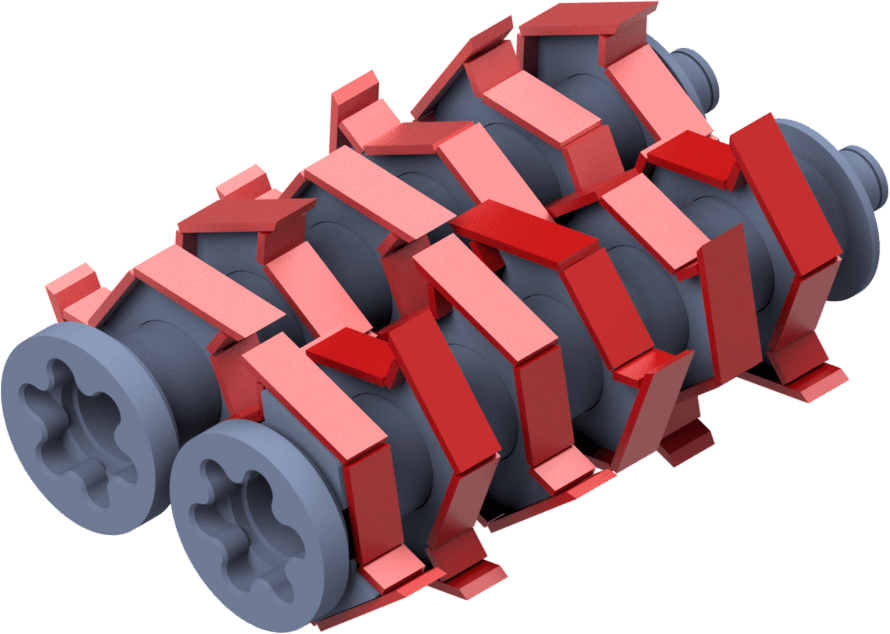

IMPAKTOR 250 EVO II shaft configuration for concrete and mineral waste processing 2
■ IMPAKTOR 250 EVO II shaft configuration for concrete and mineral waste processing 2

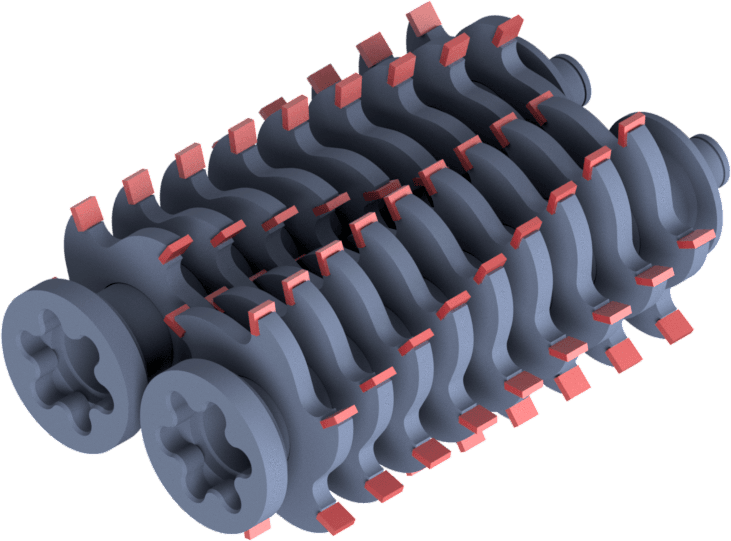

IMPAKTOR 250 EVO II shaft configuration for concrete and mineral waste processing 3
■ IMPAKTOR 250 EVO II shaft configuration for concrete and mineral waste processing 3
Operation footage
Verified Field Telemetry Archive

In Action

Status: Optimal

Records: 6 Units

● VERIFIED ARCHIVE||Bavaria, DE
GPS: 48.7904° N, 11.4976° E
|
MATERIAL: Mixed C&D Waste / Concrete Rubble
RECORDED SESSION RATE: 42 ST/h
|00:42 — Rebar Ingestion → Auto-Reverse
00:42 — Rebar Ingestion → Auto-Reverse

Signal

SSL_ACTIVE

Metadata

Impaktor 850: Wurzer Umwelt

RENDER_OK

Coords

48.7904° N, 11.4976° E

Multi-Channel Feed

●─ MILESTONES
00:42
Rebar Ingestion → Auto-Reverse
02:18
Shaft Torque Peak 104,734 lb-ft
04:55
Fraction 0-2 in Output Stable
End of Archive
AXE MACHINERY // HEAVY DUTY // INDUSTRIAL FORCE // SERIES 4
STABLE

ROI Calculator

Loading…
Loading…

Competitor Comparison

vs
IMPAKTOR 250 EVO II vs EDGE Slayer VS420EDGE heavy-class twin-shaft shredder (29.2 t, CAT C9.3 310 kW) positioned for high-volume C&D and scrap, weighed against the ARJES Impaktor 250 EVO II (14.0 t, Volvo Penta 129 kW) on CEE logistics, cassette service, and thermal stability.
vs
IMPAKTOR 250 EVO II vs Metso M&J PreShred 4000MMetso heavy-class twin-shaft shredder (35.0 t tracked, CAT C15 403 kW) positioned for high-volume primary reduction, compared with the ARJES Impaktor 250 EVO II (14.0 t, Volvo Penta 129 kW) on 10k-hour TCO, transport permitting, and rebar wrapping prevention.
vs
IMPAKTOR 250 EVO II vs Pronar MRW 2.85Pronar MRW 2.85 — a Polish single-shaft slow-speed shredder (19.5 t, Scania DC09 265 kW) engineered for C&D and biomass, weighed against the ARJES Impaktor 250 EVO II (dual-shaft asynchronous hydrostatic, 14 t hooklift-compatible, 0.27 l/t fuel benchmark). The matchup exposes the 96-hour hardfacing downtime penalty of the monolithic Pronar shaft versus the 2-hour ARJES quick-change cassette system.
MODEL TCO FOR YOUR OPERATION

Gate fees, landfill taxes, and energy costs swing the verdict by ±30%. Run the live TCO model for your region.

Compliance Hub // 13 jurisdictions · interactive calculator · preset: 250 t/moRun live TCO model
Expert Context

Compliance & Efficiency Briefing

MOBILE DEPLOYMENT

Track-Mounted Mobile Shredder for Urban Sites

Compact track-mounted mobile shredder configuration enables rapid deployment on constrained urban job sites without auxiliary transport. The Impaktor 250 series delivers processing asphalt and reinforced concrete directly at the demolition source, eliminating haulage costs and achieving measurable on-site recycling efficiency for contractors operating under strict urban emission zones and noise-restricted permits.

Verified Throughput

Small-to-Medium Operations — 61 ST/h Capacity

Designed for small-to-medium operations requiring up to 61 ST/h throughput under strict urban emission zones. The 173 HP Volvo Penta diesel engine (EU Stage V compliant) paired with a 4' 11" twin-shaft system processes construction and demolition waste, concrete, and mixed rubble at sustained 61 ST/h while maintaining sub-75 dB(A) operating noise levels suitable for residential-adjacent work zones.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

[ 01 / 05 ]
MOBILE DEPLOYMENT

Track-Mounted Mobile Shredder for Urban Sites

Compact track-mounted mobile shredder configuration enables rapid deployment on constrained urban job sites without auxiliary transport. The Impaktor 250 series delivers processing asphalt and reinforced concrete directly at the demolition source, eliminating haulage costs and achieving measurable on-site recycling efficiency for contractors operating under strict urban emission zones and noise-restricted permits.

Verified Throughput

Small-to-Medium Operations — 61 ST/h Capacity

Designed for small-to-medium operations requiring up to 61 ST/h throughput under strict urban emission zones. The 173 HP Volvo Penta diesel engine (EU Stage V compliant) paired with a 4' 11" twin-shaft system processes construction and demolition waste, concrete, and mixed rubble at sustained 61 ST/h while maintaining sub-75 dB(A) operating noise levels suitable for residential-adjacent work zones.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

Regulatory compliance

Compliance-Ready Jurisdictions

This industrial shredder is the recommended solution for construction and demolition waste processing under landfill tax regulation mandates.

US-NV-AZUnited States (NV/AZ)

Industrial shredding solution for United States (NV/AZ)

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in United States (NV/AZ) regulatory framework.

View United States (NV/AZ) compliance details →
MKNorth Macedonia

Industrial shredding solution for North Macedonia

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in North Macedonia regulatory framework.

View North Macedonia compliance details →
UAUkraine

Industrial shredding solution for Ukraine

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in Ukraine regulatory framework.

View Ukraine compliance details →
NGNigeria

Industrial shredding solution for Nigeria

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in Nigeria regulatory framework.

View Nigeria compliance details →
EGEgypt

Industrial shredding solution for Egypt

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in Egypt regulatory framework.

View Egypt compliance details →
COColombia

Industrial shredding solution for Colombia

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in Colombia regulatory framework.

View Colombia compliance details →
Expert Context

RELATED SOLUTION BRIEFINGS

  • Product

    Impaktor 350 EVO II — Higher Throughput

    For higher throughput requirements, see Impaktor 350 — 175 kW engine, 100 t/h C&D waste capacity, and interchangeable sieve baskets for fraction size optimization.

  • Solution

    Concrete crushing solution

    See this machine deployed in concrete crushing operations — verified throughput, ROI, and shaft selection.

  • Solution

    Full-stream C&D recycling solution

    See this machine in full-stream C&D recycling — multi-fraction processing without cassette changes.

  • Material hub

    Material compatibility hub

    Material hub: shaft compatibility, throughput keys, and certified machine classes.
