SUPER HEAVY MOBILE DIESEL SERIES

Impaktor 1250 D

Field gallery · 06 frames
[ 01 / 06 ]

Heavy-duty mobile twin-shaft shredder Impaktor 1250 D equipped with a massive 400 kW CAT C13 diesel engine (37,000 kg). Features Hardox wear parts to maximize ROI and lower TCO in high-volume processing of concrete, construction waste, car bodies, and mixed scrap.

From$647,460EXW
Request quote & TCO payload
+381644422555Email sales
Industrial Applications

Industrial Applications

Verified deployment scenarios for the Impaktor 1250 D across C&D waste recycling, landfill reduction programs, and fraction size optimization workflows.

C&D Waste

Construction & Demolition Waste Processing

The Impaktor 1250 D processes mixed C&D waste streams — concrete, brick, timber, plastics, and mixed debris — in a single pass. With 784 HP diesel drive, it delivers up to 198 ST/h throughput, eliminating the need for pre-sorting and reducing landfill-bound material by up to 85%.

LANDFILL REDUCTION

Landfill Diversion & Volume Reduction

On-site 784 HP diesel-powered shredding converts bulky demolition debris into reusable aggregate fractions, achieving landfill reduction rates of 80–90%. Processed material can be directly reused as road base, pipe bedding, or fill — closing the material loop and cutting gate-fee costs by up to 60%.

FRACTION SIZE OPTIMIZATION

Fraction Size Optimization via Interchangeable Sieves

Interchangeable sieve baskets allow precise fraction size optimization: from 1" fine fraction for sub-base production to 6" coarse output for erosion control. The quick-change cassette system minimizes downtime between fraction changes — under 15 minutes — keeping multi-fraction job sites productive.

Technical Specifications

DIMENSIONS
Version
Mobile unit
Length
24' 11" (Transport)
Width
9' 10" (Transport)
Height
11' 2" (Transport)
Total weight
40.8 US ton / 36.4 US ton (Transport)
DRIVE
Engine
Diesel engine
Emission standard
EU emissions standard
Power
585 / 796
Fuel capacity
396.3 gal
Gearbox
Bonfiglioli
DISCHARGE CONVEYOR
Discharge height
Variable
Width
4' 7"
Options
Optional discharge belt and overband magnet
SHREDDING UNIT
Hopper volume
15
Shaft length
8' 2"
Shaft diameter
2' 9"
Weight
7.7 US ton (15,432 lbs)
Rotation speed
15 – 45
Power Output
RATED BENCHMARK ENVELOPE198-220 ST/h
APPLICATION RATED RANGE154-198 ST/h
FIELD OBSERVED182 ST/h at Voestalpine on clean C&D
Construction & Demolition waste
RATED BENCHMARK ENVELOPE154-176 ST/h
APPLICATION RATED RANGE121-154 ST/h
VERIFIED SUSTAINED121 ST/h
FIELD OBSERVED141 ST/h on M300 concrete
Concrete / Asphalt
RATED BENCHMARK ENVELOPE110-165 ST/h
APPLICATION RATED RANGE88-132 ST/h
FIELD OBSERVED105 ST/h at biomass plant on waste wood
Waste wood
RATED BENCHMARK ENVELOPE165-220 ST/h
APPLICATION RATED RANGE132-187 ST/h
Biomass
RATED BENCHMARK ENVELOPE44-55 ST/h
Waste & Plastics
RATED BENCHMARK ENVELOPE28-33 ST/h
Car bodies
RATED BENCHMARK ENVELOPE28-33 ST/h
Mixed scrap

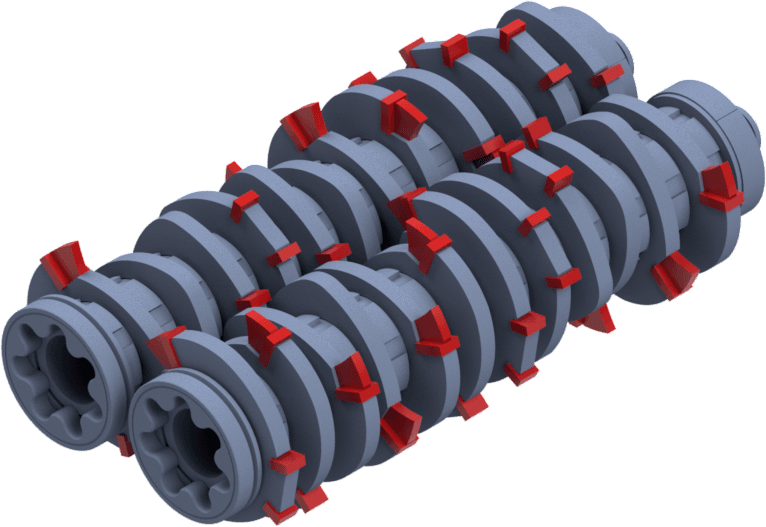

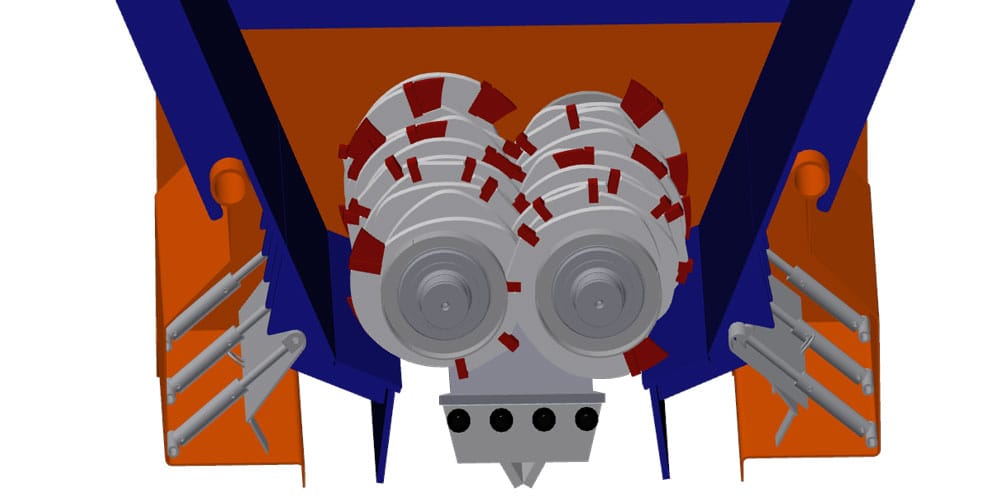

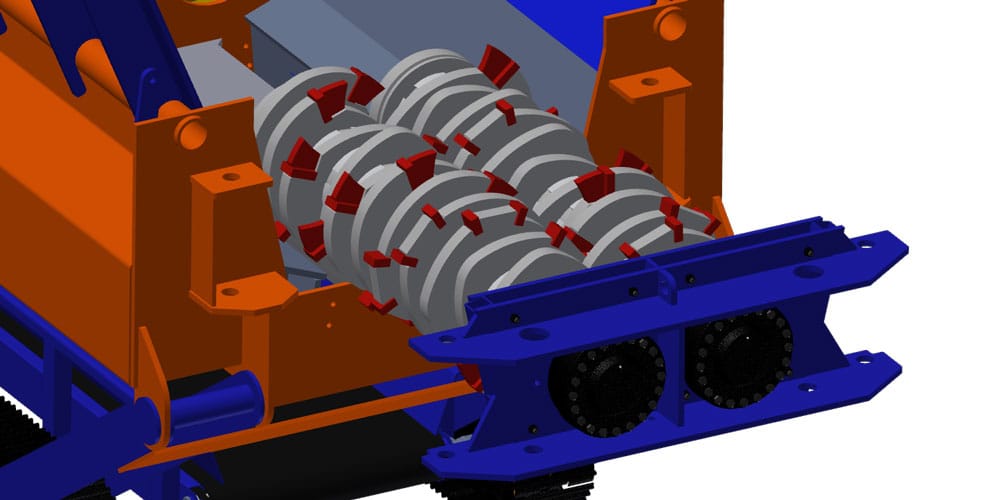

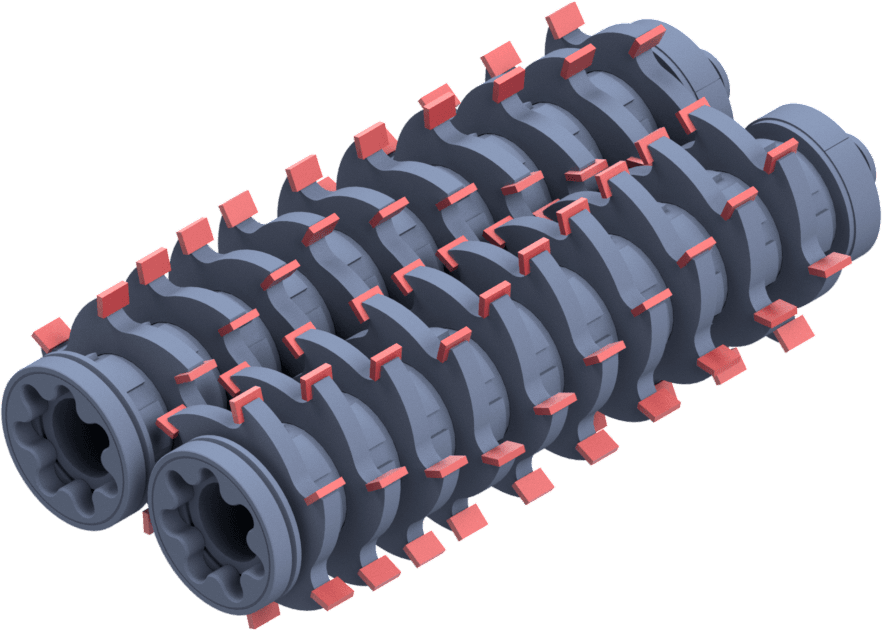

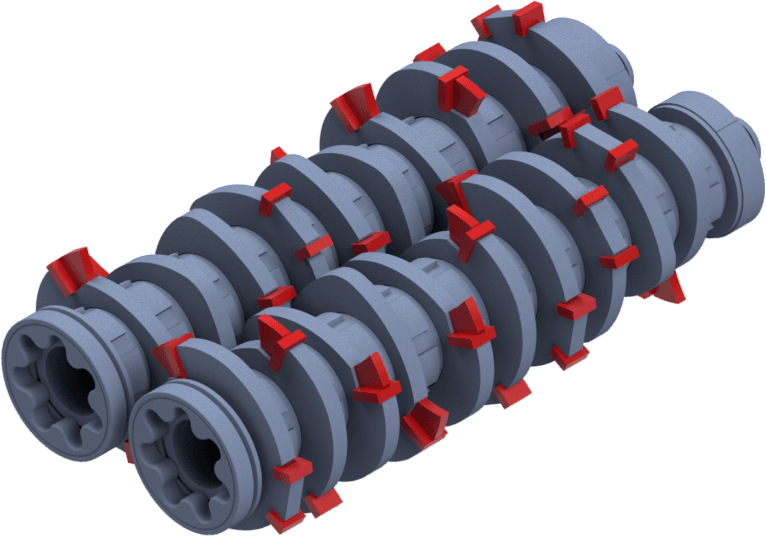

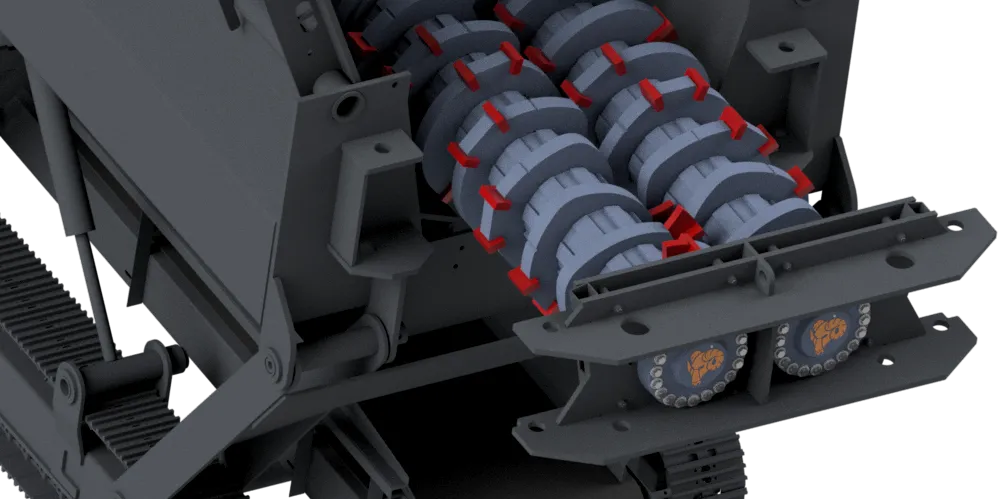

Shaft systems · 03 variants
Impaktor 1250 D shaft configuration for concrete and mineral waste processing 1
■ Impaktor 1250 D shaft configuration for concrete and mineral waste processing 1
Impaktor 1250 D shaft configuration for concrete and mineral waste processing 2
■ Impaktor 1250 D shaft configuration for concrete and mineral waste processing 2
Impaktor 1250 D shaft configuration for concrete and mineral waste processing 3
■ Impaktor 1250 D shaft configuration for concrete and mineral waste processing 3
Operation footage
Verified Field Telemetry Archive

In Action

Status: Optimal

Records: 6 Units

● VERIFIED ARCHIVE||Bavaria, DE
GPS: 48.7904° N, 11.4976° E
|
MATERIAL: Mixed C&D Waste / Concrete Rubble
RECORDED SESSION RATE: 42 ST/h
|00:42 — Rebar Ingestion → Auto-Reverse
00:42 — Rebar Ingestion → Auto-Reverse

Signal

SSL_ACTIVE

Metadata

Impaktor 850: Wurzer Umwelt

RENDER_OK

Coords

48.7904° N, 11.4976° E

Multi-Channel Feed

●─ MILESTONES
00:42
Rebar Ingestion → Auto-Reverse
02:18
Shaft Torque Peak 104,734 lb-ft
04:55
Fraction 0-2 in Output Stable
End of Archive
AXE MACHINERY // HEAVY DUTY // INDUSTRIAL FORCE // SERIES 4
STABLE

ROI Calculator

Loading…
Loading…

Competitor Comparison

vs
Impaktor 1250 D vs Metso LT120Metso LT120 — a mobile jaw crusher positioned for primary reduction of concrete, asphalt, and demolition aggregate, often shortlisted alongside the ARJES Impaktor 1250 D for high-volume C&D recycling yards.
MODEL TCO FOR YOUR OPERATION

Gate fees, landfill taxes, and energy costs swing the verdict by ±30%. Run the live TCO model for your region.

Compliance Hub // 13 jurisdictions · interactive calculator · preset: 1000 t/moRun live TCO model
Expert Context

Compliance & Efficiency Briefing

SUPER_HEAVY

Super-Heavy Scrap & Concrete Processing

The Impaktor 1250 D delivers 536 HP of diesel-powered shredding force in a 37-ton mobile platform. Designed for the most demanding mega-scale operations — from massive scrap metal processing to reinforced concrete demolition — achieving up to 220 ST/h throughput in continuous industrial service.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

[ 01 / 04 ]
SUPER_HEAVY

Super-Heavy Scrap & Concrete Processing

The Impaktor 1250 D delivers 536 HP of diesel-powered shredding force in a 37-ton mobile platform. Designed for the most demanding mega-scale operations — from massive scrap metal processing to reinforced concrete demolition — achieving up to 220 ST/h throughput in continuous industrial service.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

Regulatory compliance

Compliance-Ready Jurisdictions

This industrial shredder is the recommended solution for construction and demolition waste processing under landfill tax regulation mandates.
