HEAVY MOBILE DIESEL SERIES

IMPAKTOR 1000

Field gallery · 05 frames
[ 01 / 05 ]

Heavy-duty mobile twin-shaft shredder IMPAKTOR 1000 powered by a massive 400 kW CAT C13 diesel engine (36,000 kg). Engineered with Hardox wear parts to maximize ROI and lower TCO. Capable of crushing concrete, asphalt, scrap metal, and engine blocks. Features track system and hook-lift mobility.

From$430,920EXW
Request quote & TCO payload
+381644422555Email sales
Industrial Applications

Industrial Applications

Verified deployment scenarios for the IMPAKTOR 1000 across C&D waste recycling, landfill reduction programs, and fraction size optimization workflows.

C&D Waste

Construction & Demolition Waste Processing

The IMPAKTOR 1000 processes mixed C&D waste streams — concrete, brick, timber, plastics, and mixed debris — in a single pass. With 536 HP diesel drive, it delivers up to 331 ST/h throughput, eliminating the need for pre-sorting and reducing landfill-bound material by up to 85%.

LANDFILL REDUCTION

Landfill Diversion & Volume Reduction

On-site 536 HP diesel-powered shredding converts bulky demolition debris into reusable aggregate fractions, achieving landfill reduction rates of 80–90%. Processed material can be directly reused as road base, pipe bedding, or fill — closing the material loop and cutting gate-fee costs by up to 60%.

FRACTION SIZE OPTIMIZATION

Fraction Size Optimization via Interchangeable Sieves

Interchangeable sieve baskets allow precise fraction size optimization: from 1" fine fraction for sub-base production to 6" coarse output for erosion control. The quick-change cassette system minimizes downtime between fraction changes — under 15 minutes — keeping multi-fraction job sites productive.

Field gallery · 02 frames
[ 01 / 02 ]

Technical Specifications

DIMENSIONS
Configuration
Track system and hook lift
Length
45' 11" / 33' 6" (transport)
Width
9' 8" / 9' 8" (transport)
Height
14' 9" / 10' 10" (transport)
Total weight
39.7 US ton (79,366 lbs)
DRIVE
Standard
Track system
Engine type
CAT C13
Emission standard
EU emissions standard
Power
400 / 544
Fuel tank
277.4 gal
Gearbox
Bonfiglioli
DISCHARGE CONVEYOR
Discharge height
14' 9"
Belt width
4' 7"
Included
Overbelt magnet, discharge container, and water sprinkler system
SHREDDING UNIT
Hopper volume
10.00
Shaft length
8' 2"
Shaft diameter
2' 9"
Weight
7.5 US ton (14,991 lbs)
Speed
18 - 52
Power Output
RATED BENCHMARK ENVELOPE28-55 ST/h
Commercial waste
RATED BENCHMARK ENVELOPE17-33 ST/h
Aluminum
RATED BENCHMARK ENVELOPE22-44 ST/h
White goods
RATED BENCHMARK ENVELOPE309-331 ST/h
APPLICATION RATED RANGE265-309 ST/h
VERIFIED SUSTAINED42 ST/h
FIELD OBSERVED292 ST/h on mixed C&D light
Construction debris
RATED BENCHMARK ENVELOPE331-353 ST/h
Asphalt
RATED BENCHMARK ENVELOPE14-28 ST/h
Rubber & tires
RATED BENCHMARK ENVELOPE10-21 ST/h
Car bodies
RATED BENCHMARK ENVELOPE17-33 ST/h
Engine blocks
RATED BENCHMARK ENVELOPE243-265 ST/h
APPLICATION RATED RANGE198-243 ST/h
FIELD OBSERVED215 ST/h on clean B25 concrete
Concrete
Shaft systems · 03 variants

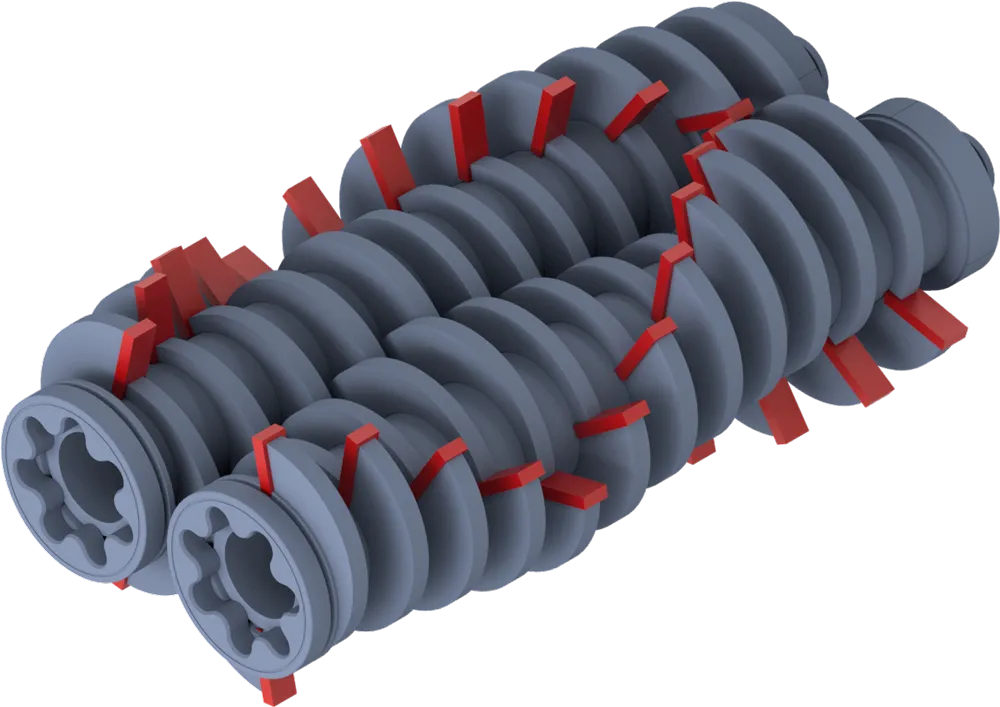

IMPAKTOR 1000 shaft configuration for concrete and mineral waste processing 1
■ IMPAKTOR 1000 shaft configuration for concrete and mineral waste processing 1

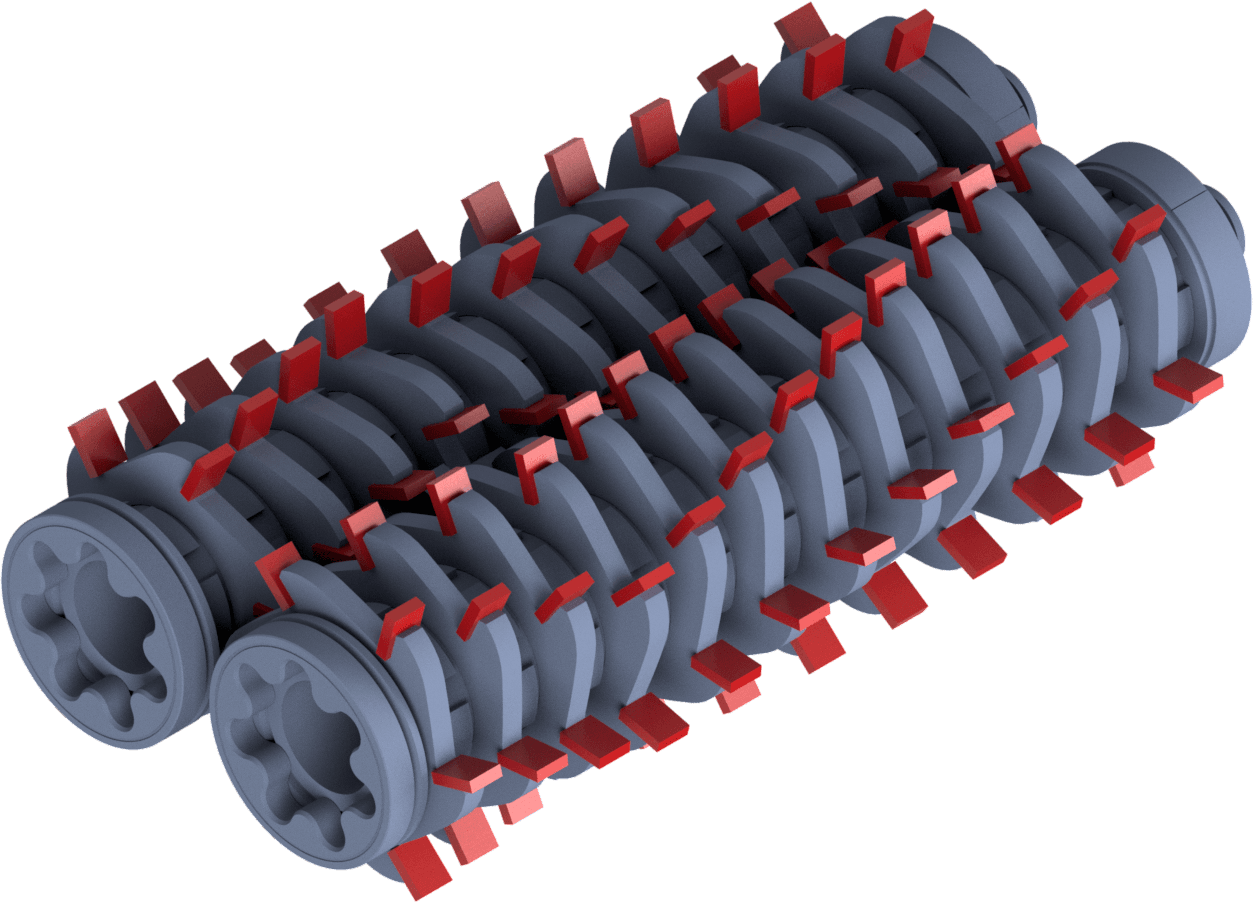

IMPAKTOR 1000 shaft configuration for concrete and mineral waste processing 2
■ IMPAKTOR 1000 shaft configuration for concrete and mineral waste processing 2

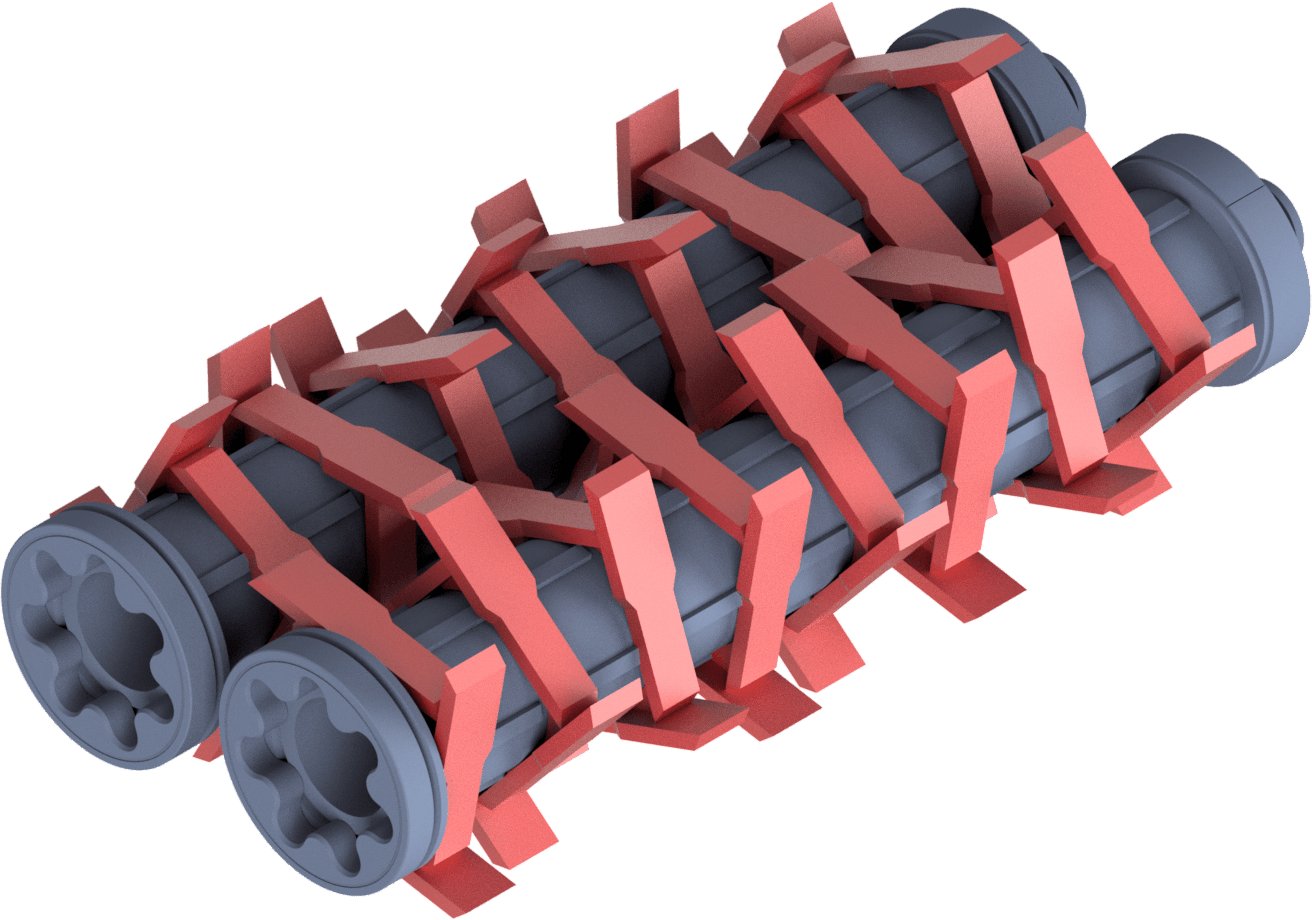

IMPAKTOR 1000 shaft configuration for concrete and mineral waste processing 3
■ IMPAKTOR 1000 shaft configuration for concrete and mineral waste processing 3
Operation footage
Verified Field Telemetry Archive

In Action

Status: Optimal

Records: 6 Units

● VERIFIED ARCHIVE||Bavaria, DE
GPS: 48.7904° N, 11.4976° E
|
MATERIAL: Mixed C&D Waste / Concrete Rubble
RECORDED SESSION RATE: 42 ST/h
|00:42 — Rebar Ingestion → Auto-Reverse
00:42 — Rebar Ingestion → Auto-Reverse

Signal

SSL_ACTIVE

Metadata

Impaktor 850: Wurzer Umwelt

RENDER_OK

Coords

48.7904° N, 11.4976° E

Multi-Channel Feed

●─ MILESTONES
00:42
Rebar Ingestion → Auto-Reverse
02:18
Shaft Torque Peak 104,734 lb-ft
04:55
Fraction 0-2 in Output Stable
End of Archive
AXE MACHINERY // HEAVY DUTY // INDUSTRIAL FORCE // SERIES 4
STABLE

ROI Calculator

Loading…
Loading…

Competitor Comparison

vs
IMPAKTOR 1000 vs Hammel VB 950 DKHammel VB 950 DK — a stationary twin-shaft primary shredder powered by a CAT C13 diesel-electric plant, often positioned against the ARJES Impaktor 1000 for scrap metal and ELV processing at 400 kW class.
vs
IMPAKTOR 1000 vs HAAS Tyron 1500HAAS Tyron 1500 — a German twin-shaft synchronized shredder (30 t, CAT C13 350 kW) targeted at C&D and MSW, weighed against the ARJES Impaktor 1000 (dual-shaft asynchronous hydrostatic, ~18 t, 160,000 Nm asynchronous torque baseline). The matchup exposes the synchronized-twin-shaft torque ceiling against the ARJES asynchronous kinematic, plus the 96-hour hardfacing penalty for the monolithic HAAS shaft versus the 2-hour ARJES cassette exchange.
vs
IMPAKTOR 1000 vs Bandit 3680XP TrackBandit 3680XP Track — the heaviest horizontal cuttermill in the matrix (38.55 t, CAT C27 783 kW, 1 050 HP) targeted at high-volume forestry and green waste, weighed against the ARJES Impaktor 1000 (dual-shaft asynchronous, 36 t, 400 kW, 240 000 Nm). The matchup exposes brute-force throughput vs optimized TCO: fuel, transport logistics, and cutting-tool maintenance.
MODEL TCO FOR YOUR OPERATION

Gate fees, landfill taxes, and energy costs swing the verdict by ±30%. Run the live TCO model for your region.

Compliance Hub // 13 jurisdictions · interactive calculator · preset: 700 t/moRun live TCO model
Expert Context

Compliance & Efficiency Briefing

UNIVERSAL_HEAVY

Universal Heavy-Duty Waste Processing

The Impaktor 1000 combines a powerful 536 HP CAT C13 engine with a 36-ton tracked chassis and hook-lift system for extreme versatility across waste streams. From aluminum and white goods to construction debris and mixed commercial waste, the 1000 delivers up to 353 ST/h throughput in the most demanding industrial environments.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

[ 01 / 04 ]
UNIVERSAL_HEAVY

Universal Heavy-Duty Waste Processing

The Impaktor 1000 combines a powerful 536 HP CAT C13 engine with a 36-ton tracked chassis and hook-lift system for extreme versatility across waste streams. From aluminum and white goods to construction debris and mixed commercial waste, the 1000 delivers up to 353 ST/h throughput in the most demanding industrial environments.

C&D Waste

Construction and Demolition Waste Processing

Engineered for high-volume construction and demolition waste streams including concrete, brick, timber, and mixed debris. The twin-shaft system processes heterogeneous feedstock in a single pass, eliminating pre-sorting costs and enabling direct on-site recycling of construction and demolition waste into reusable aggregate fractions.

Landfill Tax

Landfill Tax Regulation Compliance

On-site shredding reduces landfill-bound material volume by 80–90%, directly lowering exposure to progressive landfill tax regulation penalties. Processed fractions qualify for gate-fee exemptions under current mandate frameworks, converting a regulatory cost center into a measurable operational equipment ROI driver within 10–14 months.

Throughput

Material Throughput Efficiency

Optimized shaft geometry and Hardox wear parts deliver sustained material throughput efficiency across extended operating shifts. Interchangeable sieve baskets enable fraction size optimization from 1" fine grades to 6" coarse output, maintaining consistent material throughput efficiency even with variable feedstock composition.

Regulatory compliance

Compliance-Ready Jurisdictions

This industrial shredder is the recommended solution for construction and demolition waste processing under landfill tax regulation mandates.

US-NV-AZUnited States (NV/AZ)

Industrial shredding solution for United States (NV/AZ)

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in United States (NV/AZ) regulatory framework.

View United States (NV/AZ) compliance details →
RSSerbia

Industrial shredding solution for Serbia

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in Serbia regulatory framework.

View Serbia compliance details →
BABosnia & Herzegovina

Industrial shredding solution for Bosnia & Herzegovina

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in Bosnia & Herzegovina regulatory framework.

View Bosnia & Herzegovina compliance details →
MEMontenegro

Industrial shredding solution for Montenegro

Optimized for construction and demolition waste processing with landfill tax regulation compliance. Delivers proven material throughput efficiency and operational equipment ROI in Montenegro regulatory framework.

View Montenegro compliance details →
Expert Context

RELATED SOLUTION BRIEFINGS

  • Solution

    MSW volume reduction solution

    See this machine in MSW volume reduction — WtE feedstock preparation and pre-sorting.

  • Solution

    Full-stream C&D recycling solution

    See this machine in full-stream C&D recycling — multi-fraction processing without cassette changes.

  • Solution

    Concrete crushing solution

    See this machine deployed in concrete crushing operations — verified throughput, ROI, and shaft selection.
